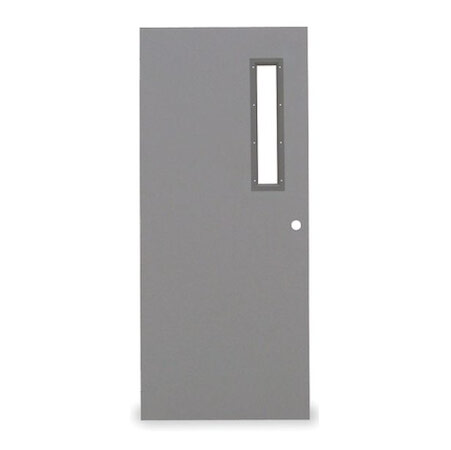

Steel Door 5" x 20" Window

Door Features

Door Features

Widths: 2/6 (30”) , 2/8 (32”),

2/10 (34”), 3/0 (36”).

Glass: 5" x 20"

Heights: 80" or 84"

Hinge Gap: 1/8"
Strike Gap: 1/8"

Top Gap: 1/8"
Undercut: 3/4"

Fire Ratings:

ULC – Means 45min Rated – Used in a 1 hour rated wall

ULB – Means 1 ½ Hour Rated – Used in a 2 hour rated wall

ULA – Means – 3 Hour Rated – Used in a 4 hour rated wall

Fire Rated Openings – 6mm Wire Glass
Not Fire Rated Openings – 5mm Clear Tempered Glass

Technical Documents

• Design Drawing
